    SYSTEM DESIGN:
RETURN TO BIO


Cobra's Curse Roller Coaster
Cobra's Curse - Busch Gardens, Tampa Bay, FL opened 2016
Audio/Video/Control Systems Designed by Josh Loar
(Design drawings unavailable due to non-disclosure agreements)

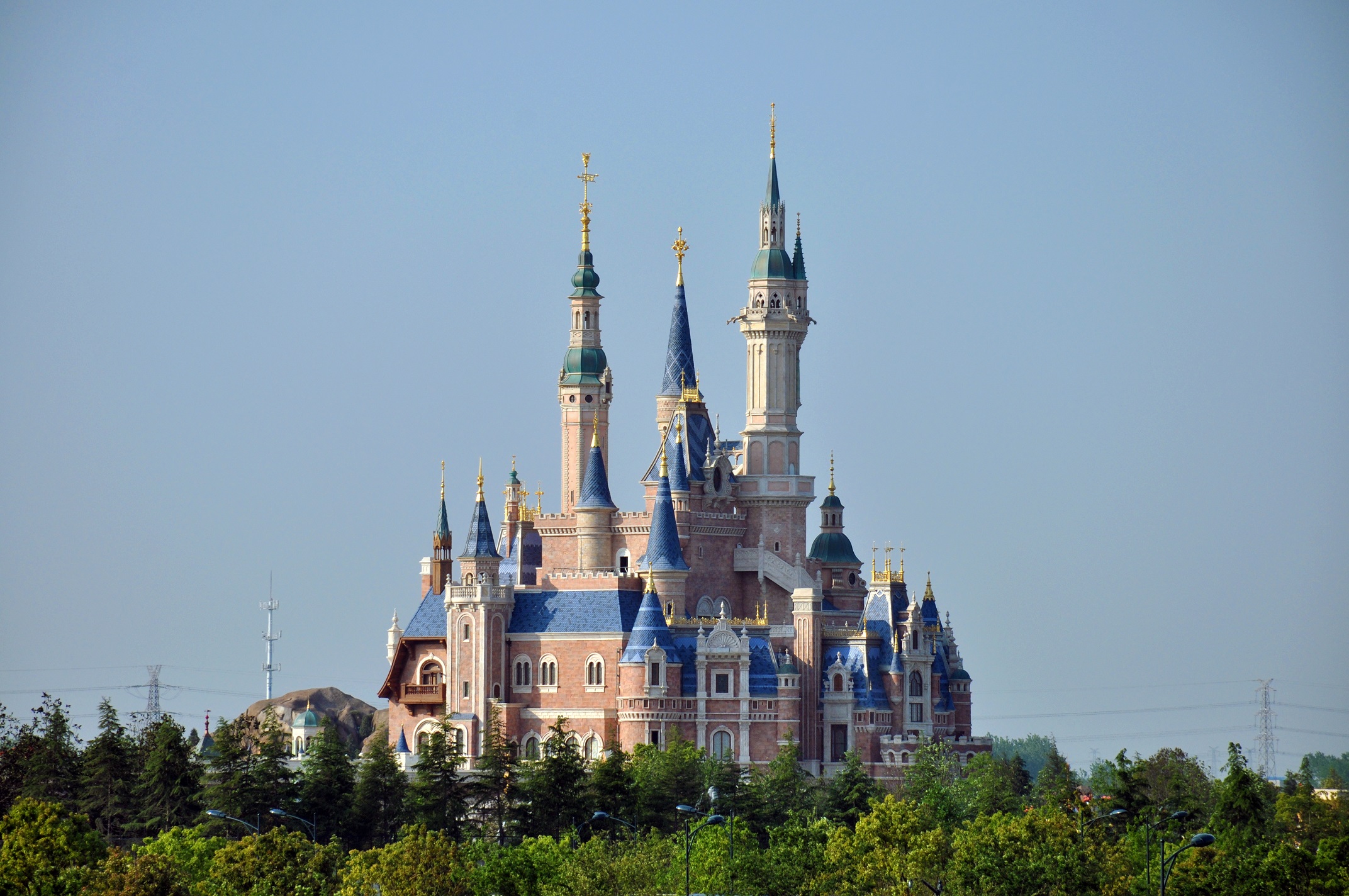

Shanghai Disney Resort Castle
Shanghai Disney Resort- Shanghai, China opened 2016
Audio Systems Design - Main Entry Courtyard, Pirates of the Caribbean Queue by Josh Loar
Parkwide Fiberoptic Network Engineering by Josh Loar
(Design drawings unavailable due to non-disclosure agreements)

Dragons Wild Shooting Ride
Dragons Wild Shooting - Lotte World, Seoul, South Korea opened 2013
Audio DSP, Video, Playback, and Custom Touch Panel Showcontrol System Design (including all original graphics and architecture) by Josh Loar
(Design drawings/graphics unavailable due to non-disclosure agreements)


                Josh Loar












System Design Plate System Design Plate

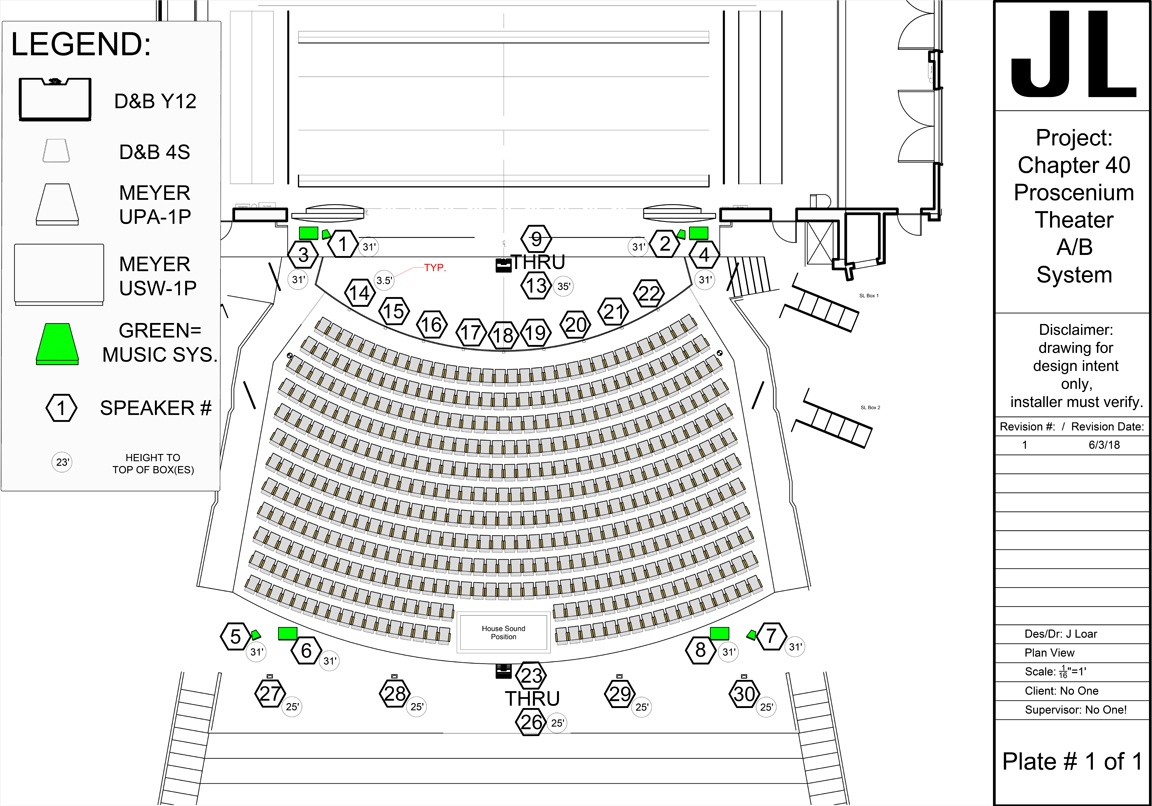

Sample Musical Theater System Speaker Plan from
The Sound System Design Primer (Focal Press, 2019)

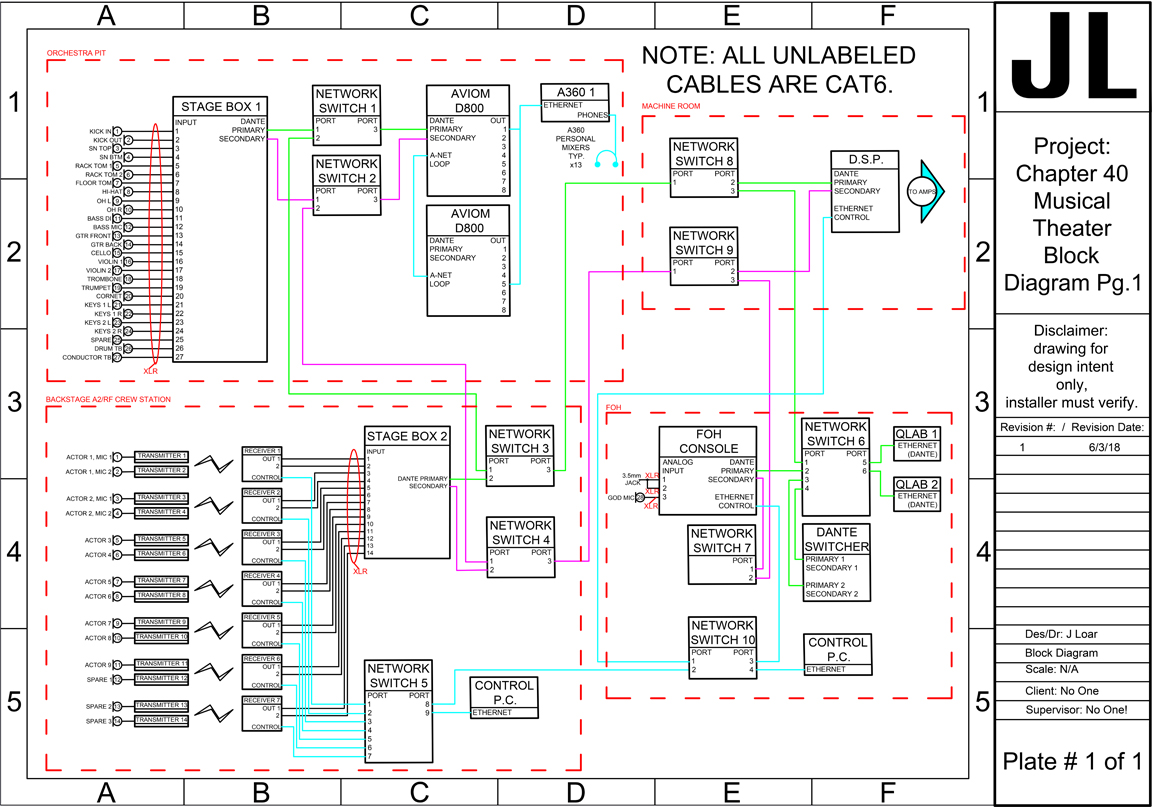

Sample Musical Theater System Block Diagram from
The Sound System Design Primer (Focal Press, 2019)


System Design Plate System Design Plate

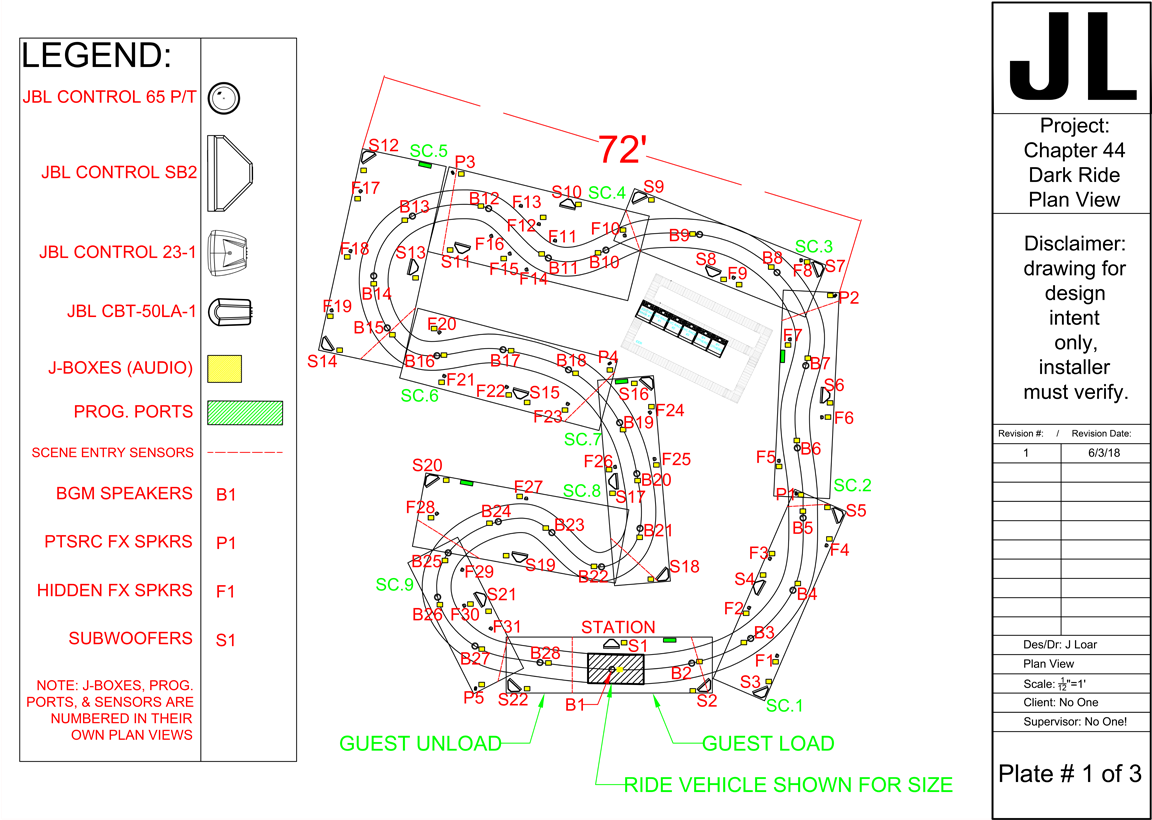

Sample Theme Park Dark Ride Speaker Plan from
The Sound System Design Primer (Focal Press, 2019)

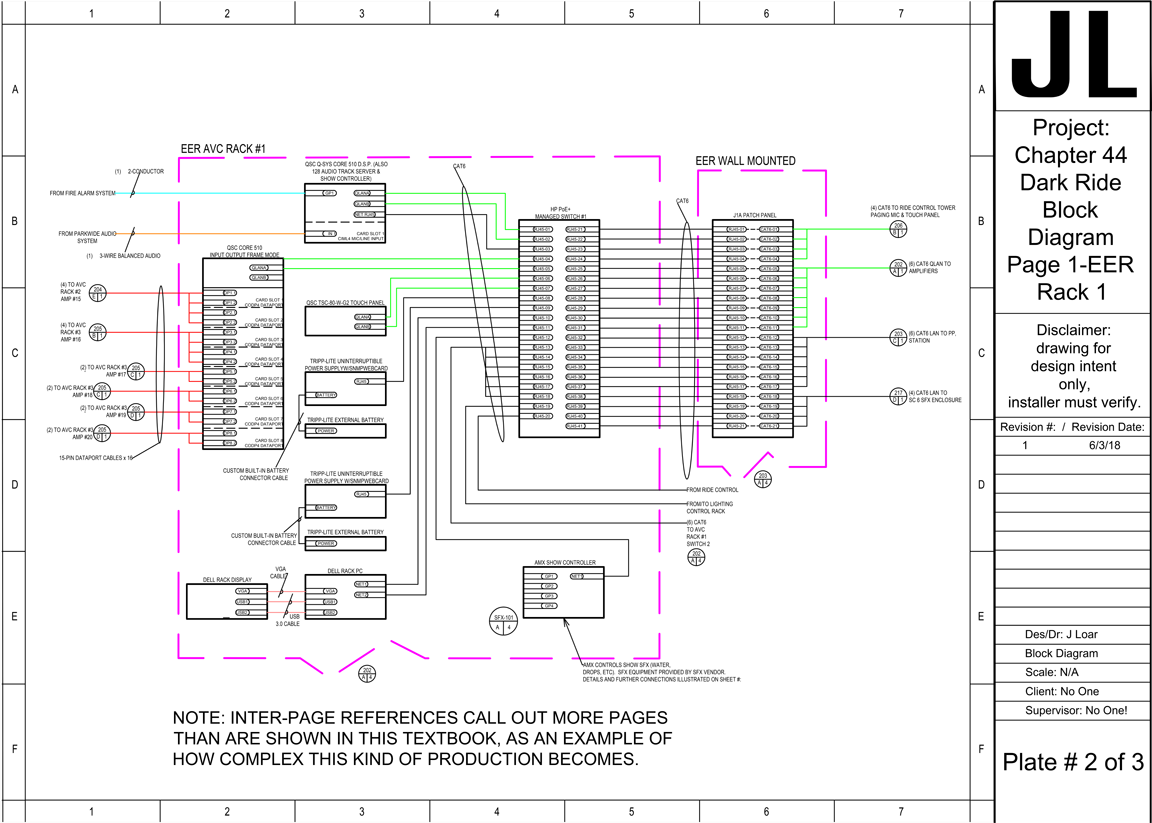

Sample Theme Park Dark RIde Block Diagram from
The Sound System Design Primer (Focal Press, 2019)


System Design Plate System Design Plate

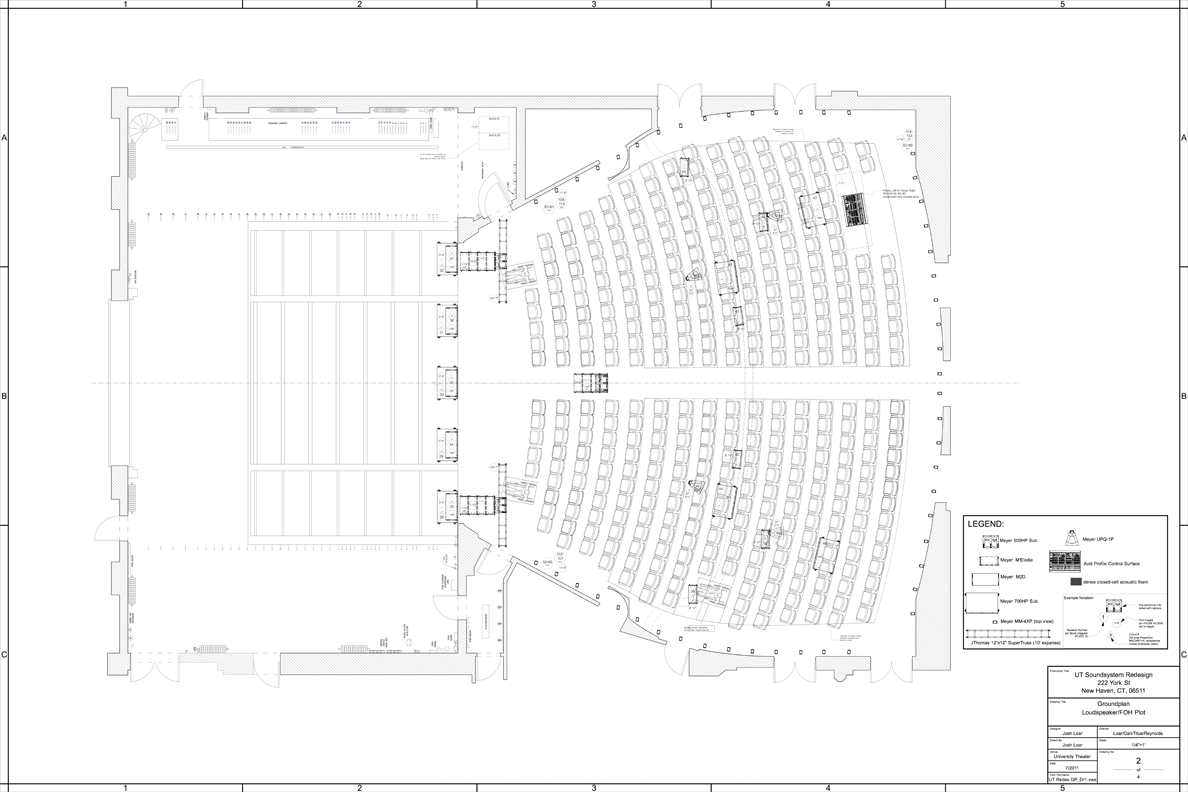

Yale University Theater 2012- Plan View Yale University Theater 2012- System Block Diagram
All Drafting by Josh Loar
